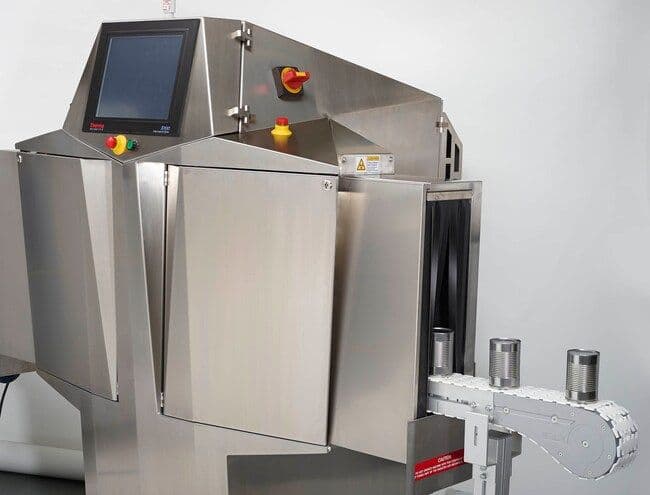

Xpert™ 侧射型 X 射线检查系统
对高大的直立式包装进行高速单光束 X 射线检查，以避免尴尬、成本高昂的产品召回，并在消费者发现之前避免问题。
森德仪器提供 赛默飞/Thermo Fisher Xpert™ 侧射型 X 射线检查系统 在全国范围内的代理经销、选型咨询、报价沟通、采购支持、安装培训和售后协同服务，价格面议。
微信扫码沟通
扫码添加技术顾问，发送产品型号或应用需求。

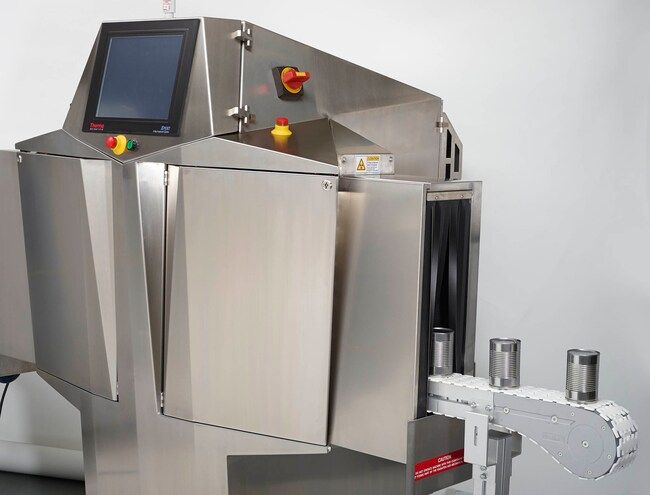

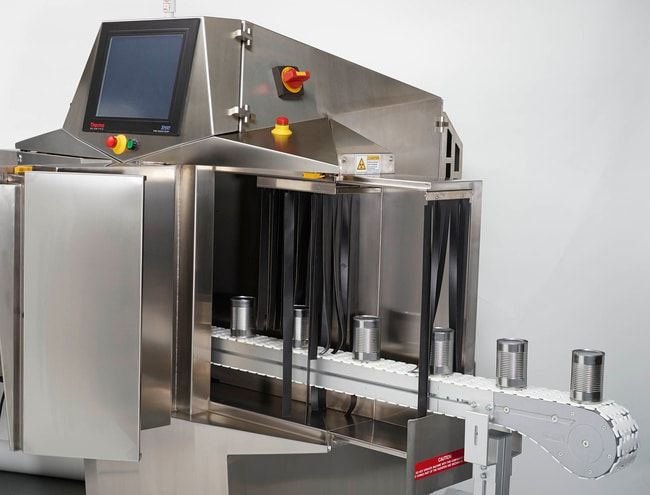

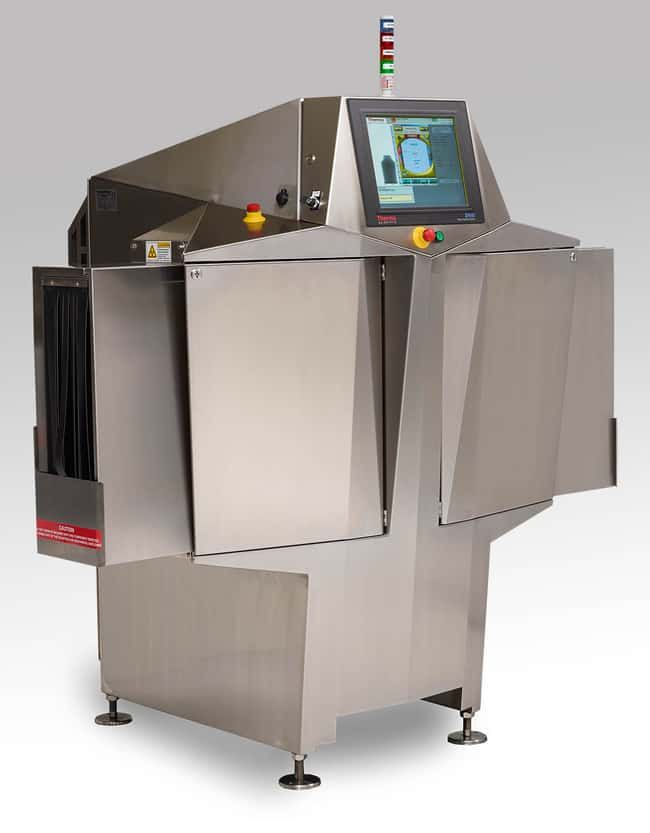

借助 Thermo Scientific™ Xpert™ 侧射型 X 射线检查系统，轻松检测存在于瓶瓶罐罐中的任何地方的异物。这种高速、高性能的水平X-射线束（从后到前）系统为高大的直立式包装提供单光束X-射线检测，并包括专门用于检测听装罐和瓶子所有区域内物体的软件。该系统的设计目的在于，使用现有的传送机来降低成本和减少占地面积。该系统符合 HACCP 要求，并且可以升级至符合 IP69K 直冲式规格。
Xpert 侧射型 X 射线检查系统
采购问答
<p>X-ray inspection of packaged and bulk food products is proven to be extremely safe. There is no documented evidence of adverse health effects of X-rays on equipment operators, the food products that travel through the equipment, and ultimately, the pet consuming those products.</p>
<p>Since wet or moist pet foods have a high product effect, X-ray inspection is the best technology to detect contaminants such as metal, glass, stone, and other dense foreign objects.</p>
<p>Metal detection works very well with dry/kibble pet food and treats that do not have a product effect that wet or moist pet foods do. Metal detection equipment provides reliable, cost-effective protection from even the smallest metal contaminants found in pet food production anywhere in a process. If the packaging material contains metal, X-ray inspection would be the right choice. In addition, if there are other contaminant concerns such as stone, high density plastic or glass, X-ray inspection systems will detect these contaminants as well.</p>
<p>There are several points in the pet food production process that benefit from food safety inspection (metal detectors, X-ray inspection) and checkweighing technology. Here are some examples:<br/><br/> - Incoming ingredients. Large pet food producers may require that their vendors meet specific HACCP objectives and provide proof of inspection. Even with those methodologies in place, some will also inspect incoming ingredients. Typical incoming inspection consists of drop through and bulk flow metal detectors.<br/><br/> - After mixing/rendering. Processing equipment such as an industrial blender or mixer will age over time and potentially introduce small particles or shavings of metal into the product being processed. It is important to position inspection equipment after this process equipment to catch any contaminants as early in production as possible, so it doesn't affect final product quality as well as damage equipment further downstream. The inspection equipment type will depend on the product type and whether its formulation creates a “product effect”. Wet or moist pet food products are more suited toward X-ray equipment, while metal detectors perform well with dry or kibble type pet food products.<br/><br/> - After filling/packing. The recommended inspection equipment type is dependent on the packaging material or combination of materials that have been selected for this product. Metal components such as aluminum foil trays, metal cans, aluminum foil bags or metalized firm structures are much more suited to X-ray inspection. Flexible materials without a metal component, paperboard folding cartons, bags or pouches work very well with either metal detectors or X-ray inspection systems. At this stage, checkweighers are frequently used in combination with a metal detector or X-ray inspection system to ensure product weight matches information printed on the product label.<br/><br/> - After case packing. After case packing is another good inspection point as this is the last stop before the finished products leave the facility. The recommended inspection equipment type is dependent on the packaging material of the individual product. This is typically done via X-ray inspection. In addition to contaminant detection, the X-ray system's ability to detect missing pieces will help ensure that the specified count has been loaded into the case. In certain situations, especially when X-ray inspection is not included at the end of the line, checkweighers are placed here to ensure that the proper number of packages are contained inside the case.</p>
Sende Lab
当前页面用于确认具体仪器型号、参数和采购沟通；如果要从行业热点、测试标准、实验室建设和验收资料角度规划整套能力，可继续查看 Sende Lab。
请填写必填信息，我们将在工作日尽快回复。
<p>“Product effect” occurs when a product has a conductive property which affects the magnetic field generated by the food metal detector. This is typically found in high salt, high moisture product environments. For example, wet cat food will show significantly more product effect due to its high moisture and salt content. This negatively impacts the metal detector's ability to distinguish between actual non-ferrous metal contaminants and the false signal given by the combination of typical product attributes. In these situations, industrial X-ray inspection equipment will produce significantly better results since product effect is not a factor.</p>
<p>Yes. Vial sizes and shapes vary and may require more than one timing device to properly space the vial. In addition, the equipment footprint is very large.</p>
<p>Multi-beam food X-ray inspection systems should be used for glass in glass inspection because the multiple beams provide more views of the same bottle, increasing the detection of smaller glass.</p>
<p>Yes, the Xpert Sideshoot X-ray Inspection System meets HACCP requirements.</p>
<p>Fill level detection is a configurable parameter that can be set to determine when containers are significantly under filled. Fill level works on homogenous products with a clear line between product and head space (typically liquids or gels). Fill level does NOT work when there is NO clear distinction between product and head space or with an inconsistent level on powders.</p>
<p>Yes, though radiation-blocking curtains often cause upright containers to be knocked down or shifted. In this case, a chicane-style enclosure with a curved shape eliminates the need for curtains, because X-rays can't go around curves, although curtains are available if preferred.</p>
